Need to make a spare key for a Fiat? This tutorial follows the workflow shown in the video: identify the key profile, obtain the mechanical cutting data, cut the replacement blade with the 2M2 TANK CNC Key Cutting Machine, test the blade on the vehicle, and then complete the transponder-copy stage with compatible equipment.
Important: This guide is intended for professional locksmith and authorized vehicle-service work. Fiat key profiles and transponder systems vary by model, year and market, so verify the exact application before starting.
What You Need
- An existing working Fiat key
- A compatible replacement key or key blank
- 2M2 TANK CNC Key Cutting Machine
- 2M2 TANK App
- 2M2 TANK Easy Clone
- Correct key-profile and transponder information
VIDEO DEMO :

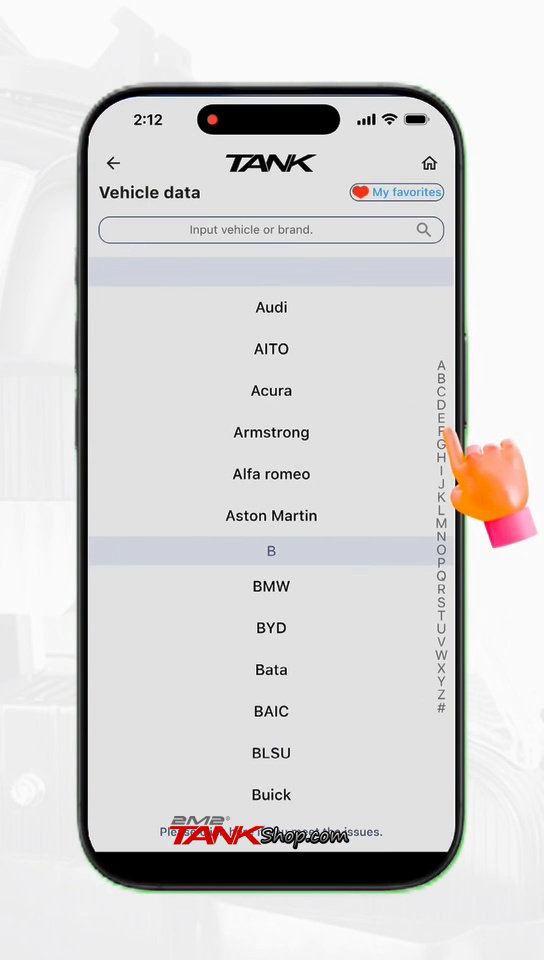

Step 1: Select the Fiat Key Profile
Open the 2M2 TANK App and locate the corresponding Fiat key profile. The video first navigates through the vehicle/key database and then displays the selected key profile together with the working key. Always confirm that the profile in the App matches the actual blade; do not select a profile only because the blade looks similar.

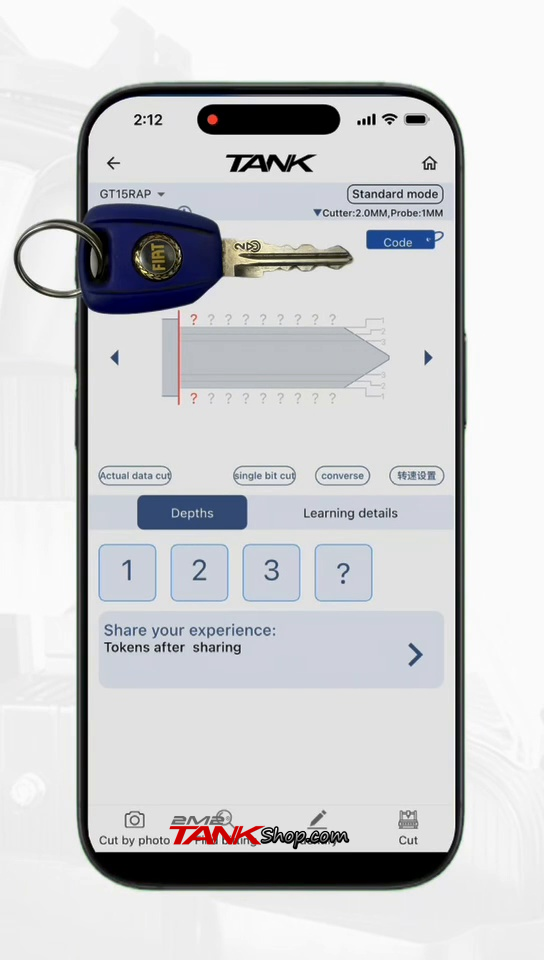

Step 2: Obtain the Mechanical Cutting Data
After the correct key profile is selected, follow the 2M2 TANK workflow to obtain the cutting information needed to reproduce the blade. The machine uses the digital key data to control the cutting path, depth and position for the supported profile.
Step 3: Cut the Replacement Fiat Key
Secure the compatible replacement key blank in the correct clamp position and confirm the cutter/probe setup before starting. The video then shows the 2M2 TANK performing the CNC cutting operation.
- Confirm the correct key blank
- Confirm the selected Fiat profile
- Check the clamp position
- Check the cutter/probe setup
- Make sure the key is firmly secured

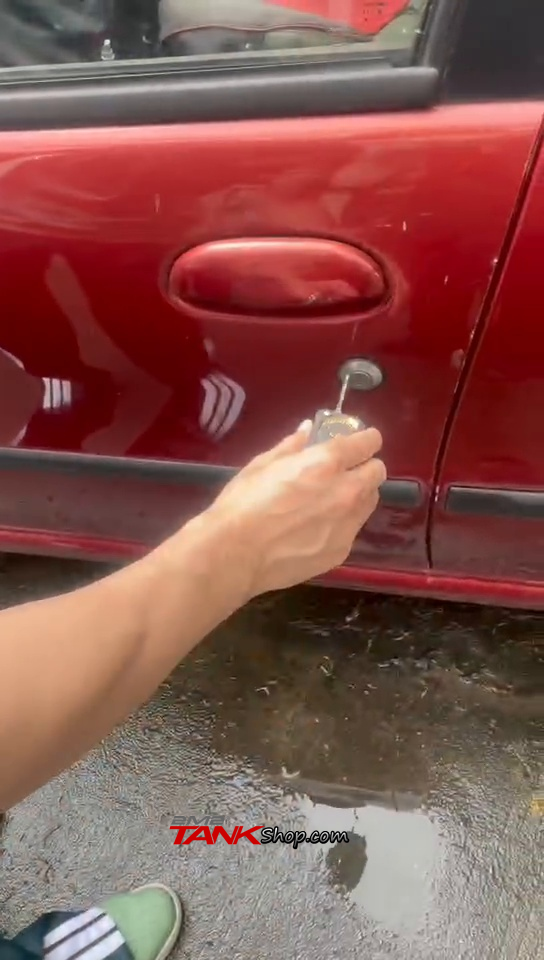

Step 4: Test the Mechanical Blade
Before completing the electronic side of the job, verify the mechanical cut. In the video, the newly cut blade is tested on the Fiat door lock. It should enter and turn smoothly. If it does not, do not force the key; recheck the profile, blade and cutting data.

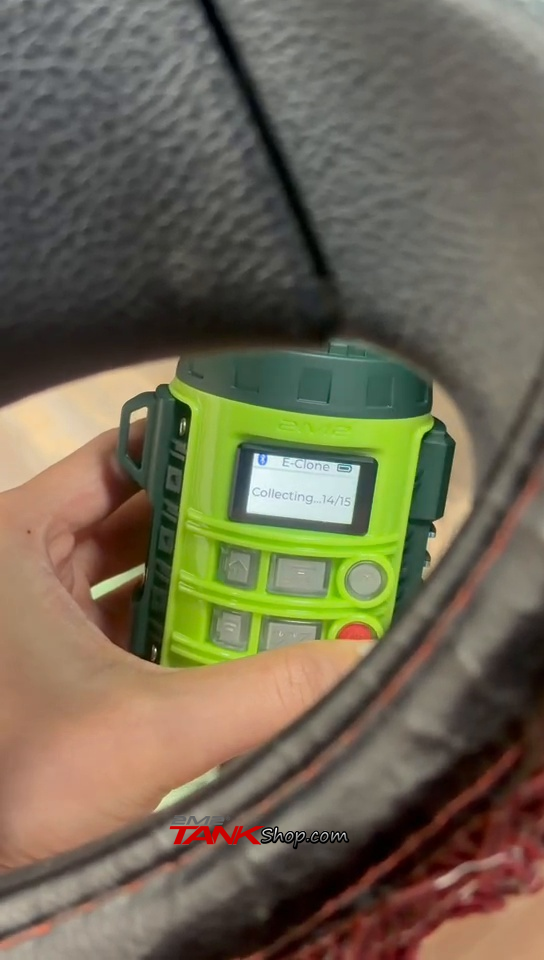

Step 5: Start the Transponder-Copy Stage
A mechanically correct blade is only one part of a modern vehicle key. The video then moves to the electronic transponder stage using separate 2M2 TANK Easy Clone. This equipment is used to read/process the original key information and prepare the compatible replacement transponder according to its own guided procedure.

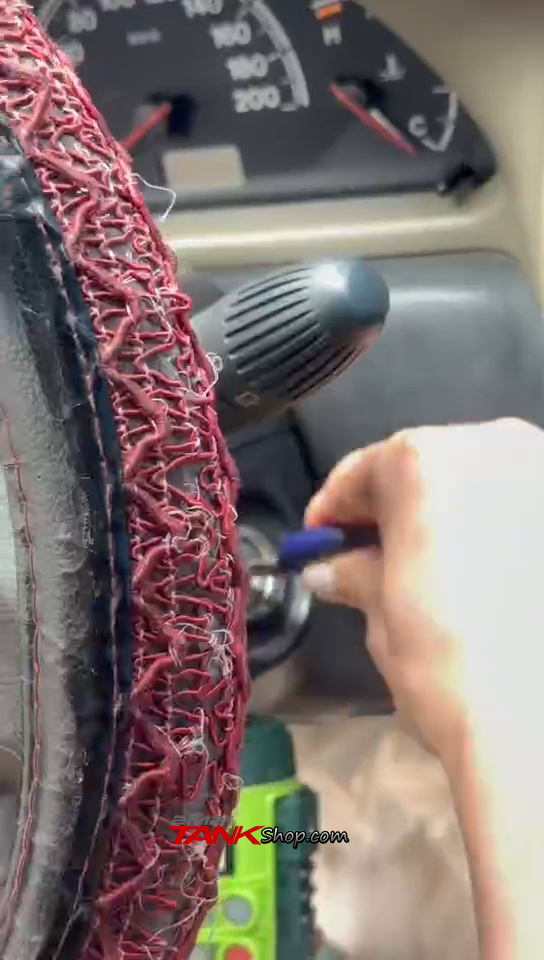

Step 6: Verify the Key at the Ignition
The replacement key is checked at the vehicle ignition as part of the workflow. Remember that a blade turning mechanically does not by itself prove that the immobilizer recognizes the transponder. Mechanical cutting and transponder authorization are separate parts of the job.

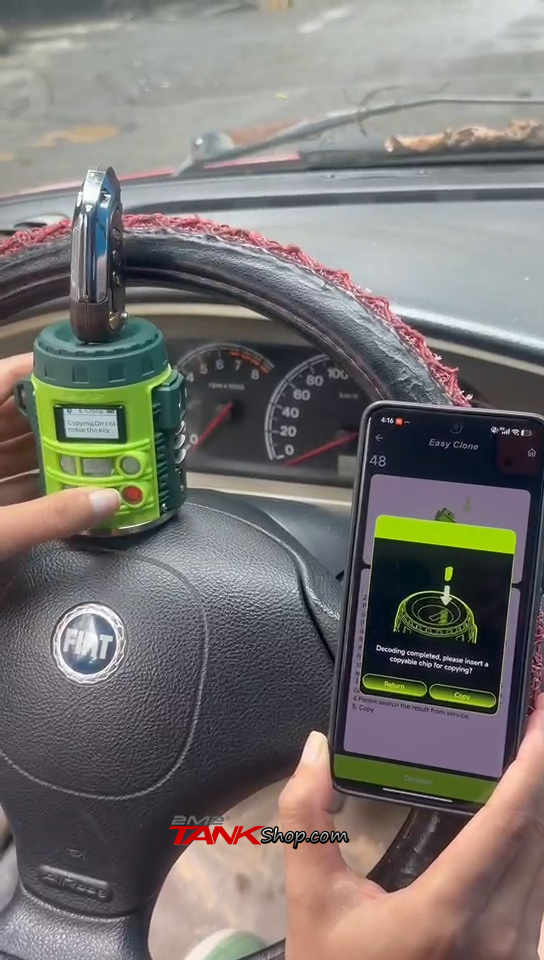

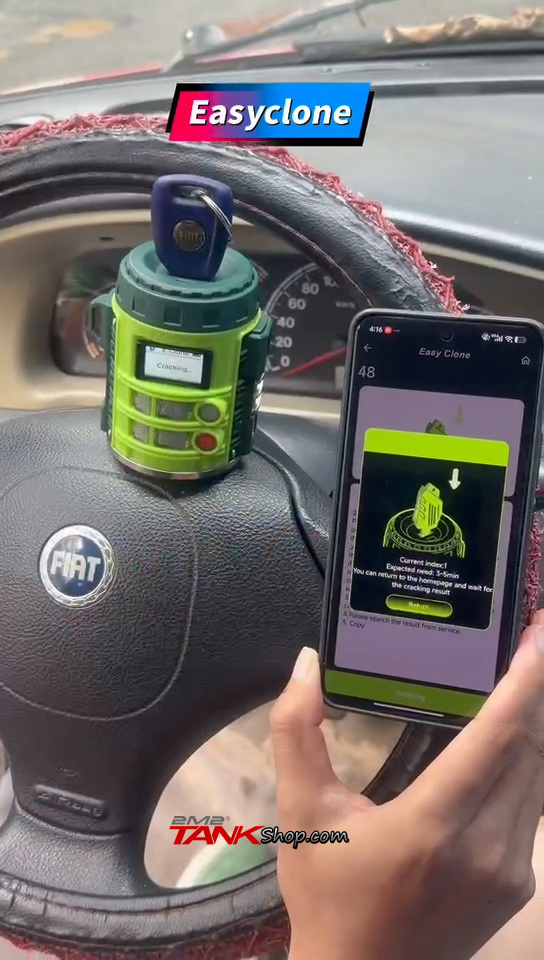

Step 7: Clone the Fiat Transponder with 2M2 TANK Easy Clone
After completing and testing the mechanical key, the next step is to clone the transponder.

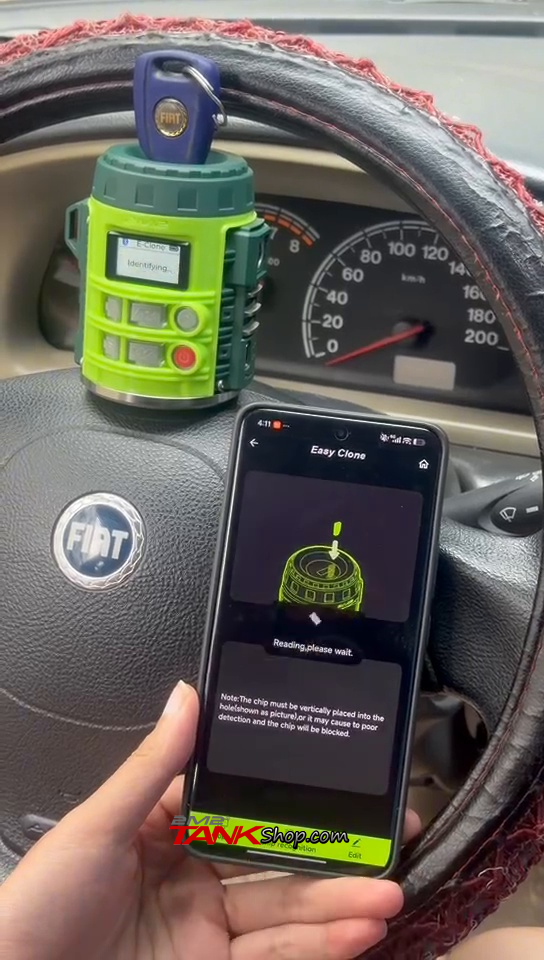

In this demonstration, the 2M2 TANK Easy Clone Machine is used to read and process the transponder information from the original Fiat key.
Easy Clone is designed for transponder reading, detecting, decoding, cloning and generating, and can work with the Magic Tank APP for supported online decoding and copying functions.
Place the original working key/transponder in the Easy Clone and follow the instructions in the APP to complete the required cloning procedure.
.
Step 8: Final Verification
After the mechanical and electronic stages are complete, test the finished key on the actual vehicle. Confirm door-lock operation, ignition operation and vehicle recognition. Only after these checks should the spare-key job be considered complete.
Fiat Key Copy: Cutting vs. Transponder Cloning
| Process | Purpose |
| Key Cutting | Duplicates the physical blade. |
| Mechanical Test | Confirms the blade operates the lock/ignition mechanically. |
| Transponder Reading / Processing | Handles the electronic information required by the compatible cloning workflow. |
| Transponder Copy | Creates the compatible electronic key copy when supported. |
| Vehicle Test | Confirms the completed key works as intended. |
The 2M2 TANK 2 Pro Shadow Warrior is used for the mechanical key-cutting portion shown in this workflow. Separate compatible transponder equipment handles the electronic portion.
Why Use 2M2 TANK for Fiat Key Duplication?
Accurate Digital Cutting
CNC-controlled movement reproduces supported key profiles from digital cutting data.
Key Database
The 2M2 TANK App helps users locate supported key profiles and the corresponding cutting workflow.
Structured Locksmith Workflow
Digital guidance makes the mechanical duplication process easier to repeat consistently.
Broad Key-Cutting Applications
Beyond this Fiat example, the 2M2 TANK platform supports a wide range of automotive and residential key-cutting jobs.
Frequently Asked Questions
Can 2M2 TANK copy a Fiat key?
For supported Fiat key profiles, 2M2 TANK can handle the mechanical blade-cutting portion. Always check the exact profile in the App.
Does cutting a Fiat key make it ready to start the car?
Not necessarily. If the vehicle uses an immobilizer transponder, the electronic side must also be handled with compatible equipment.
What is the difference between key cutting and transponder cloning?
Key cutting reproduces the physical blade. Transponder cloning/copying handles compatible electronic key information. They are separate processes.
Do all Fiat vehicles use the same key?
No. Key profiles and transponder systems can vary by model, production year and market.
Can the 2M2 TANK CNC machine clone the Fiat transponder itself?
The 2M2 TANK CNC machine handles the mechanical cutting shown here. The video uses separate compatible equipment for the transponder stage.
Can 2M2 TANK clone the Fiat transponder?
Yes, but the two 2M2 TANK devices perform different parts of the job.
The 2M2 TANK CNC Key Cutting Machine handles the mechanical key blade, while the 2M2 TANK Easy Clone Machine handles supported transponder reading and cloning operations.
Together, they provide a more complete workflow for making a Fiat key copy.
Conclusion
The video demonstrates a complete Fiat spare-key example: identify the correct key profile, obtain the cutting data, CNC-cut the replacement blade with 2M2 TANK, verify the mechanical key, complete the compatible transponder-copy workflow, and test the finished key on the vehicle.

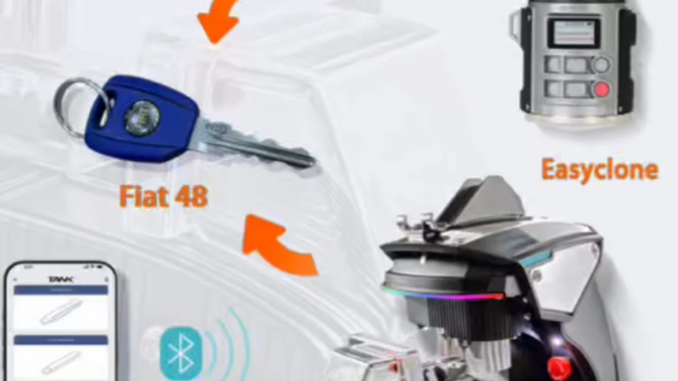

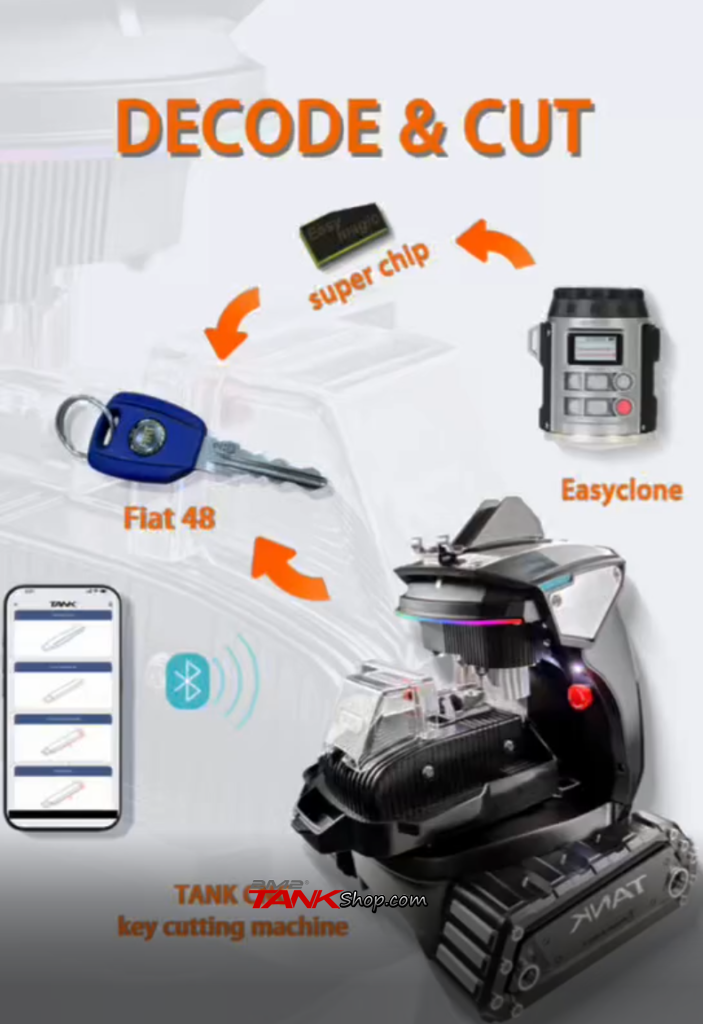

Fiat Original Key → 2M2 TANK CNC Cutting → 2M2 TANK Easy Clone → Finished Spare Key
